| الاسم التجاري: | OEM/ODM |
| رقم الموديل: | DW-104RT |
| موك: | 2 |
| السعر: | $550-900 |

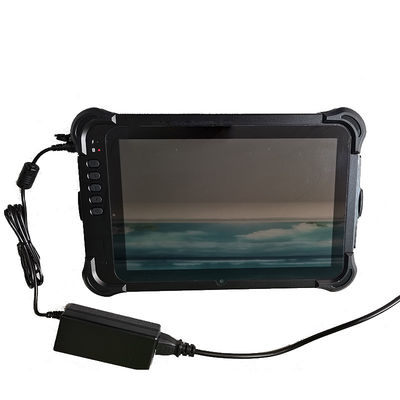

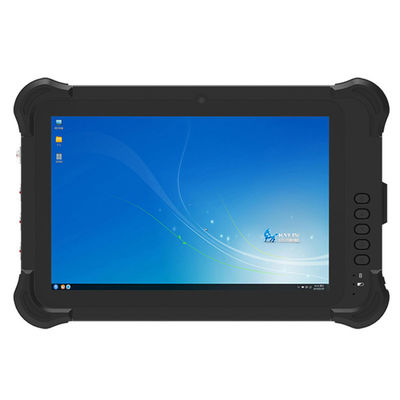

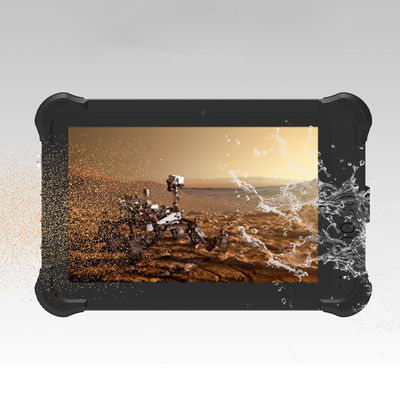

This IP54-rated waterproof rugged tablet PC features a 10.1" high-brightness display, Intel Core i5/i7 processor options, dual Gigabit LAN ports, and comprehensive connectivity for demanding industrial environments.
| Attribute | Details |
|---|---|
| Form Factor | IP54 Rugged Tablet PC |
| Dimensions | 295 × 197 × 31mm |
| Weight | 2.0kg |
| Display | 10.1" IPS (1920×1200, 700cd/m²) |
| Touch Panel | G+G Multi-Touch (10 points) |
| Battery | 5000mAh/11.6V (3-4 hours operation) |
| Component | Specification |
|---|---|
| Processor | Intel Core i5-7200U 2.5-3.1GHz (i3/i5/i7 6th/7th gen optional) |
| Graphics | Intel HD Graphics 620 |
| Memory | 8GB DDR4 (16GB/32GB optional) |
| Storage | 128GB SSD (256GB/512GB/1TB optional) |
| Cameras | Front: 5MP, Rear: 8MP |
| Audio | 8Ω/1W×2 waterproof speakers + built-in microphone |
| Interface | Details |
|---|---|
| Wireless | WiFi 802.11ac/b/g/n (2.4G & 5G dual-band), Bluetooth 4.2 |

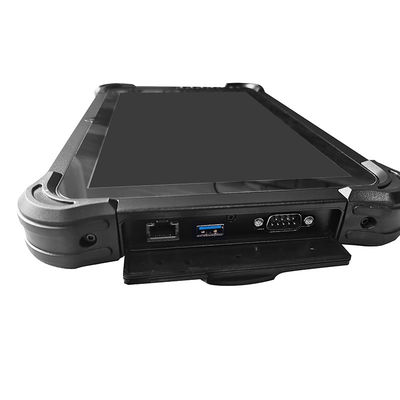

| Ethernet | 1000Mbps Gigabit LAN×2 |
| USB | USB 3.0×3 |
| Video Output | Micro HDMI 2.0 (4K@60fps UHD video) |
| Serial | DB9 (RS232)×1 |
| SIM Slot | ×1 (for optional 4G LTE module) |
| Parameter | Range |
|---|---|
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 55°C |
|
|
